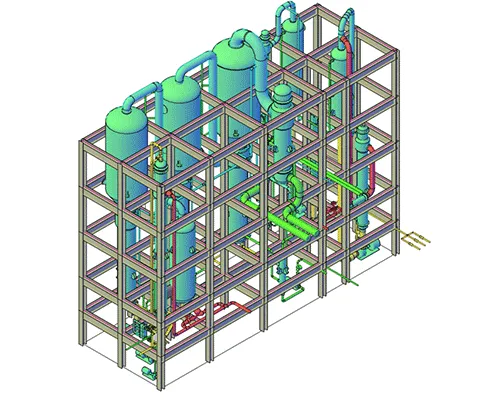

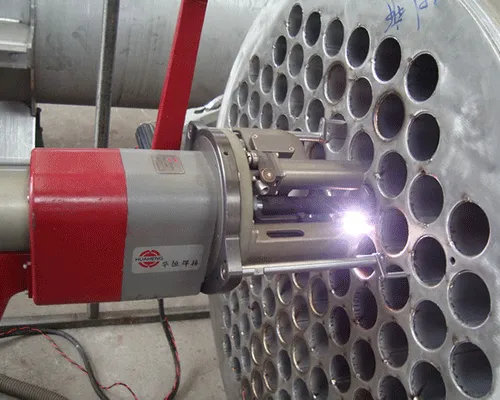

HM series TVR concentration evaporator system is a evaporation and concentration equipment that uses secondary steam many times according to the principle of vacuum low-temperature evaporation to save steam energy. According to the evaporation capacity and energy saving requirements, it can be divided into single effect, two effect, three effect, four effect, five effect and so on. The structure is divided into falling film, forced falling film, forced circulation and so on.
Suitable for evaporation of heat-sensitive, high concentration, high viscosity and corrosive materials, and suitable for concentration of corn steeping liquid and maltose syrup in starch & glucose industry, fruit juice and flavored semen in food industry, liquid milk in dairy industry, sugar juice in sugar industry and distiller's grains filtrate in alcohol industry.
Model | Evaporation capacity | Steam consumption kg/h | Each effect vacuum, mmHg | Each effect temp. ℃ | Steam pres. | Feed DS,% | Discharge DS, % | ||||
1st effect | 2nd effect | 3rd effect | 1st effect | 2nd effect | 3rd effect | ||||||
HM-EV1.0-T | 1000.0 | 250-300 | 0.0 | 448.0 | 640.0 | 99.0 | 76.0 | 53.0 | 0.6-1.0 | 6-7 | 42-48 |
HM-EV3.0-T | 3000.0 | 750-900 | |||||||||
HM-EV4.5-T | 4500.0 | 1200-1350 | |||||||||
HM-EV6.0-T | 6000.0 | 1600-1800 | |||||||||
HM-EV9.0-T | 9000.0 | 1500-2700 | |||||||||
HM-EV12.0-T | 12000.0 | 3000-3600 | |||||||||
HM-EV15.0-T | 15000.0 | 3750-4500 | |||||||||
HM-EV20.0-T | 20000.0 | 5000-6000 | |||||||||
HM-EV25.0-T | 25000.0 | 6250-7500 | |||||||||
HM-EV30.0-T | 30000.0 | 7500-9000 | |||||||||
HM-EV50.0-T | 50000.0 | 12500-15000 | |||||||||
The whole system is designed reasonably and beautifully, running stably, highly efficient and energy-saving, and low steam consumption.
High concentration ratio, falling film evaporation, so that the viscosity of the material liquid easy to evaporation, and short time concentration.
Special design, realize switching efficiency through simple operation to adapt to the production of different products.
Low evaporation temp, suitable for the concentration of heat-sensitive materials.
High heat transfer coefficient and high evaporation rate, which can prevent the "dry wall" phenomenon.
High separation effect and greater flexible operation.
Compact structure, small floor area and simple & smooth layout.
In and out of the material continuously. The material liquid can reach the required concentration after passing through the equipment once.
If the material needs continuous sterilization treatment, the sterilization and concentration of two processes completed at one time. The material has short heating time and is suitable for the concentration of heat-sensitive material liquid.
Equipped with CIP cleaning pipeline. The equipment can be cleaned on the spot. The whole equipment is easy to operate without dead Angle.
The power control is realized by the control cabinet, and the automatic control system can be installed according to the user's requirements.
Special pump, reliable seal, stable performance, little maintenance and smooth operation.
