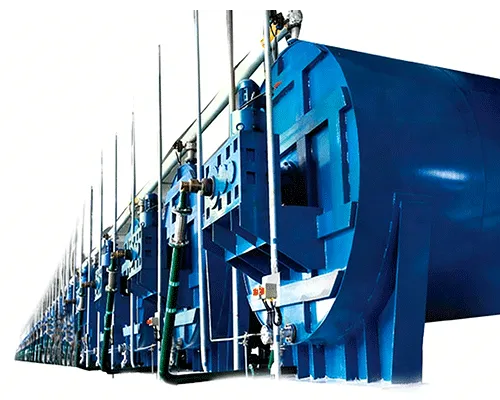

HM-HCR-V horizontal crystallizer is a cooling crystallization equipment. The crystallization of the medium is operated under atmospheric pressure. The crystallization temperature is determined by the process and the crystallization process is discontinuous. Its outstanding characteristics are simple structure, energy-saving and comfortable operation.
The crystallizer is horizontal closed cylinder structure, with packing sealing device and reduction gear installed on both end covers. The tank wall has the cooling water interlayer. The hollow shaft is arranged in the center of the tank to fix the cooling coil and agitating spiral belt. Both ends of the shaft heads have the function of cooling water circulation.
| Model | HM-HCR-V25 | HM-HCR-V30 | HM-HCR-V36 | HM-HCR-V40 | HM-HCR-V45 |
| Volume (m3) | 25 | 30 | 36 | 40 | 45 |
| Working pres. (Mpa) | ≤0.16 | ||||
| Feed DS % | 70%~75% | ||||
| Power (kw) | 3 | 4 | 5.5 | 5.5 | 7.5 |
| Rotary speed (r/min) | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 | 0.5~0.8 |
| Overall dimension (mm) | 5880×2980×3545 | 6680×2980×3545 | 7165×3250×3833 | 6305×3833×4045 | 6805×3600×4045 |
| Weight (kg) | 13500 | 15200 | 18232 | 171000 | 18420 |

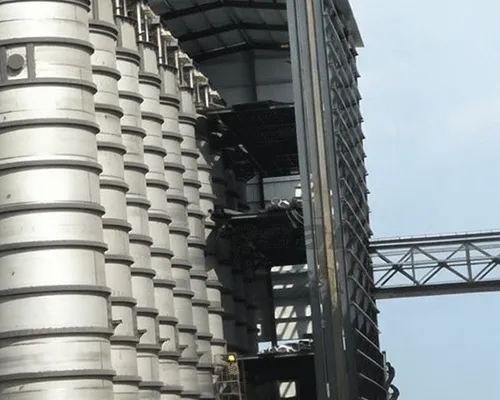

| Model | HM-VCR-V110 | HM-VCR-V178 |
| Volume (m3) | 128 | 178 |
| Material loading volume (m3) | 110 | 160 |
| Effective cooling area (m2) | 250 | 380 |
| Material | SS304 | SS304 |
| Cooling modules qty. | 11 (10 groups coil + head jacket) | 12 (11 groups coil + head jacket) |
| Cooling control circuit | 5+1 (jacket) | 5+1 (jacket) |
| Reducer power (kW) | 1.5 / 2.2 | 1.5 / 4 |
| Power of hydraulic station (kW) | 15 | 22 |
| Total height around (m) | 21 | 21.8 |
| Barrel body (mm) | Φ3300×8 | Φ3800×8 |
Customized design to meet the needs of various customers
The transmission device has compact structure, stable operation, high efficiency and low noise
Reliable mechanical seal, short stop time
Small gap between the spiral belt and the barrel body, uniform stirring, not blocked
Advanced circulating water cooling system with good cooling effect and high crystallization effect
Stainless steel inner cylinder, corrosion resistance, long service life
Crystallization of liquid glucose
Crystallization of glutamic acid, xylose and xylitol
Crystallization of tartaric acid and malic acid
Crystallization of salts in the chemical industry
Crystallization of sodium gluconate, calcium carbonate
