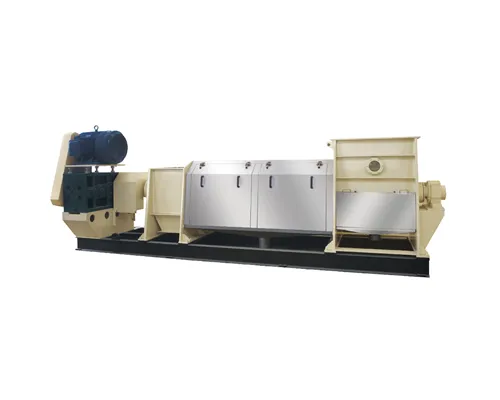

HM-SQ-F series screw extruder and HM-SQ-G screw extruder are suitable for dehydrating wet materials with high water content in starch, feed and other industries. The structure is conical shell with conical spiral tape built in it, which forms the compression of materials caused by the double factors of pitch length and height in the process of rotation. The dehydrated material is discharged from the discharge end, and the water is discharged from the sieve hole in the shell. Large compression ratio, good dehydration effect, low moisture discharge, smooth operation without vibration, and continuous production.
Model | Material | Output capacity, t/h | Feed water content, % | Discharge water content, % | Power, kW |
HM-SQ350-F | Fiber | 1.6-1.8 | 85-90 | 58-60 | 7.5 |
HM-SQ500-F | Fiber | 3.5-3.8 | 22.5 | ||
HM-SQ650-F | Fiber | 4.8-5.2 | 37 | ||
HM-SQ350-G | Germ | 1.25-1.35 | 55-60 | 7.5 | |
HM-SQ500-G | Germ | 2.8-3.0 | 22.5 |
Continuous production with high dehydration efficiency.
Simple structure, easy to use and maintain.
Compact structure, small floor space and convenient transportation.
Stable running and low failure rate.
HM-SQ-F series fiber squeezer is suitable for dewatering the fiber in the process of corn starch production, and also for dewatering the similar coarse fiber material in other industries.
HM-SQ-G series germ squeezer is suitable for germ dehydration in the production of corn starch.
