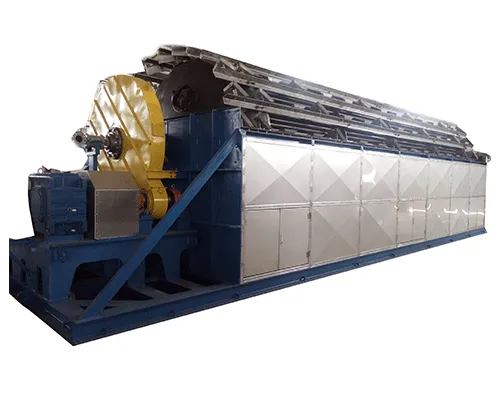

HM series tube bundle dryer system is an indirect contact dryer. Its structure is the transmission of heating tube bundle equipment with shovels fixed in the shell inside. The steam enters into the pipe through the rotary joint and transfers to condensed water to be discharged. The water in the material is heated outside the pipe and turned into steam to be discharged by the fan. The material is lifted by the material shovels that are driven inside the tube bundle, falls evenly on the outer surface of the heating pipe, and is dried from the inlet end to the outlet end by the material shovel pushed.
It is widely used for drying loose wet materials in chemical, light industry, food and feed industries.
Wide range of drying materials, large moisture evaporation, low energy consumption and continuous production.
According to the specific material characteristics and user requirements, we can provide efficient supporting equipments such as cyclone separator, high-performance steam trap and preheater using the heat of condensed water.
Model | Heat transferring area, m2 | Power, kW | Overall dimensions, mm | Weight, kg |
HM-BD0.1-P7.5 | 100 | 7.5 | 7800X3000X3200 | 25000 |
HM-BD0.1-P7.5 | 100 | 7.5 | 7800X3000X3200 | 25000 |
HM-BD0.2-P11 | 200 | 11 | 8500X3200X3500 | 31000 |
HM-BD0.3-P22 | 300 | 22 | 9600X3200X3500 | 36000 |
HM-BD0.5-P37 | 500 | 37 | 11500X3500X4000 | 45000 |
HM-BD0.8-P90 | 800 | 90 | 10600X3800X4000 | 51000 |
HM-BD1.0-P110 | 1000 | 110 | 12000X4000X4100 | 63000 |
HM-BD1.2-P132 | 1200 | 132 | 12500X4300X4200 | 68000 |
HM-BD1.5-P132 | 1500 | 132 | 13000X4500X4300 | 75000 |
Drying materials and parameters
Material | Feed water content, % | Discharge moisture content, % | Drying intensity, kg/m2.h | Consumption t steam / t water |
Corn gluten | 40 | 12-13 | 3.3-4.5 | 1.25-1.45 |
Germ | 55 | 3-5 | 2.5-3.3 | |
Corn fiber | 60 | 10-12 | 3.8-4.5 | |
Vinasse | 65-70 | 10-12 | 4.9-5.0 | |
Potato fiber | 65 | 10-12 | 3.0-4.5 | |
Feed carrier | 16 | 10-12 | 4.0-4.2 | |
Fermentation feed | 40 | 9-10 | 4.4-4.6 |
Hongmao relies on the professional design, the strict production management, the fine processing procedure, provides the high efficiency and energy saving equipment system for the customer. Manufacturing factory has passed the international ISO9001 quality system certification, and with the design and manufacturing capacity of pressure vessels. Customers can choose Chinese GB, International ISO, American standard ASME, European standard PED and other standards for equipment design and production according to their needs.
Wide range of drying materials;
Large moisture evaporation;
Low energy consumption;
Easy operation and convenient maintenance.
