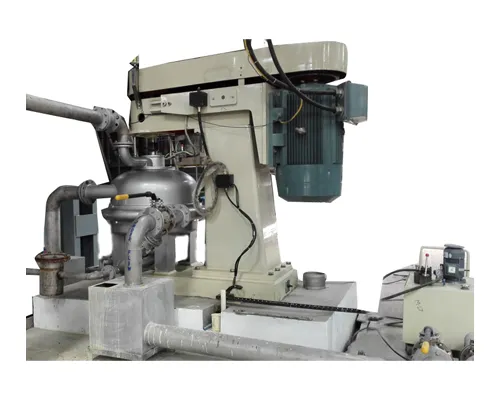

In the starch separation process, HM-SP-P series nozzle centrifuge produces very high centrifugal force due to high speed rotation, which improves the separation efficiency and maximizes the production efficiency. It has the advantages of all kinds of separator, small vibration, large handling capacity and stable operation. It is mainly used in pre-concentration of starch, separation of starch and gluten, concentration of gluten (protein) and clarification of water in the process.
Technical parameter
Model | Capacity (T/H) | Drum speed (rpm) | Power (Kw) | Weight (kg) | Overall dimension L×W×H (mm) |
HM-SP445-P30 | 20-35 | 4500- 5200 | 30 | 1400 | 1284×1407×1457 |
HM-SP520-P37 | 25-45 | 4650 | 37 | 1550 | 1617×1240×1565 |
HM-SP600-P75/55 | 30-60 | 2850- 4800 | 75/55 | 3500 | 2000×1000×2050 |
HM-SP800-P132/110 | 22-115 | 2750- 3300 | 132/110 | 7800 | 2800×1500×2200 |
HM-SP935-P250/220 | 45-225 | 2250- 3050 | 250/220 | 11000 | 3200×1800×3100 |
HongMao relies on the professional design, the strict production management, the fine processing procedure, provides the high efficiency and energy saving equipment system for the customer. Manufacturing factory has passed the international ISO9001 quality system certification, and with the design and manufacturing capacity of pressure vessels. Customers can choose international ISO, EU CE and other standards for equipment design and production according to their needs.
Large rotary drum diameter, large disc area, strong processing (separation) ability, good separation effect:
Using the upper suspension drive, so that the separator has a high degree of rotation stability, and greatly improved the service life of the bearing and spindle;
Automatic control of lubricating oil circuit is adopted to protect the driving system and extend the service life of the driving system;
Large nozzle is adopted to ensure the continuity of production with large feeding capacity and small blocking opportunity:
